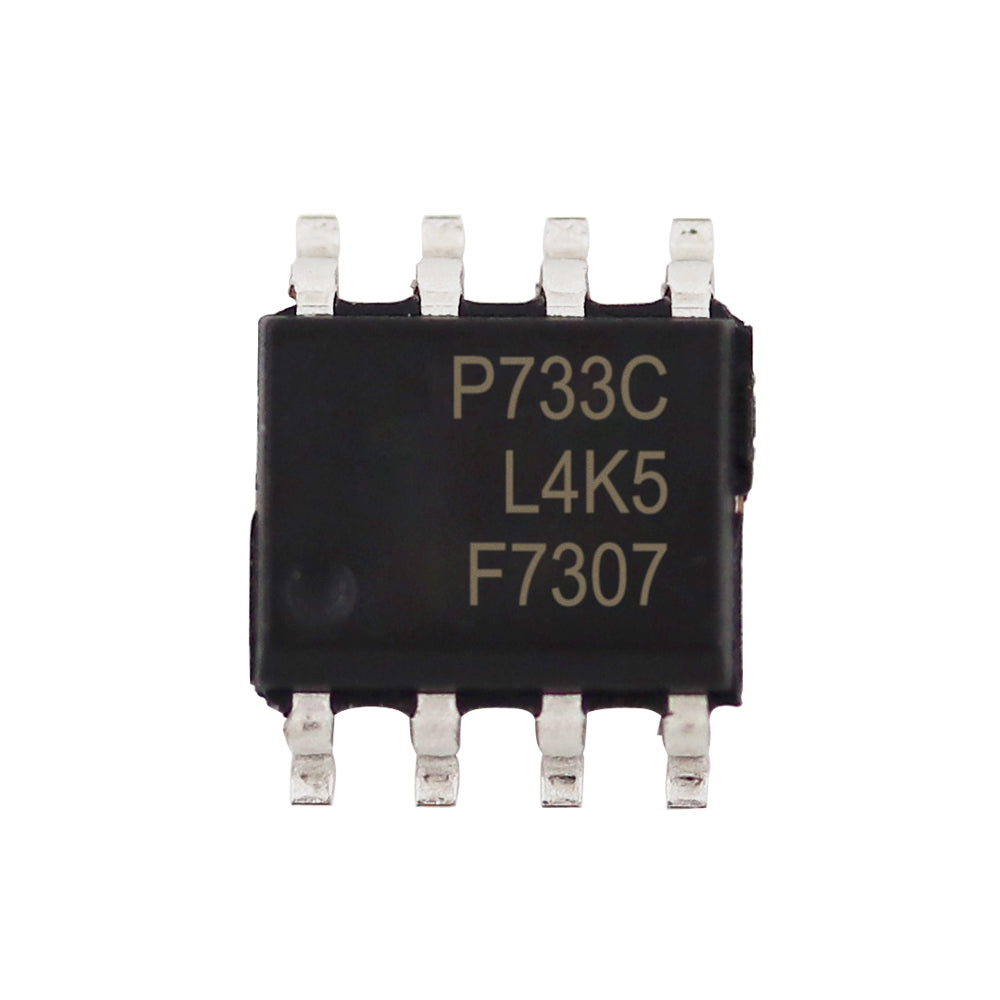

10Pcs IRF7307 F7307 HEXFET Power MOSFET SOP-8pin

Availability: In Stock
Product Type: FET, MOSFET Arrays
$2.98 USD
$0.00 USD
$2.98 USD
Please hurry! Only 100 left in stock
Subtotal: $2.98
10 customers are viewing this product

Handling time

Will usually ship within 3 business day of receiving cleared payment.

Free Returns

Learn More.

10Pcs IRF7307 F7307 HEXFET Power MOSFET SOP-8pin

10Pcs IRF7307 F7307 HEXFET Power MOSFET SOP-8pin

$0.00 $2.98

10Pcs IRF7307 F7307 HEXFET Power MOSFET SOP-8pin

$0.00 $2.98
Packing List 10 Pcs
Technology MOSFET (Metal Oxide)
Configuration N and P-Channel
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 5.2A, 4.3A
Rds On (Max) @ Id, Vgs 50mOhm @ 2.6A, 4.5V
Vgs(th) (Max) @ Id 700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 660pF @ 15V
Power - Max 2W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
